wIRA, short for water‑filtered infrared‑A, generates incoherent thermal radiation from halogen source filtered by
water cuvette, retaining 590‑1400 nm infrared‑A spectrum while eliminating most superficial‑heating infrared‑B,
infrared‑C and ultraviolet radiationPMC. It elevates tissue temperature, perfusion and oxygen partial pressure,
triggering thermal and cellular biostimulation effectsPMC. Proven for pain alleviation, anti‑inflammation,
exudation reduction and wound regeneration. Unlike laser devices, wIRA performs broad non‑destructive
irradiation for physical therapy and regenerative treatment instead of tissue ablation.
Deep‑seated anti‑inflammatory effect
｜Dilate micro‑vessels and raise tissue oxygen partial pressure, relieve deep aseptic inflammation, reduce tissue exudation
and swelling for joint and soft‑tissue lesionsPMC.
Pain relief & analgesia
｜Optimize microcirculation to ease inflammatory‑origin pain; applicable for strain, arthritis, post‑operative discomfort
and post‑herpetic neuralgia, lower subjective pain sensation.
Reduce edema & exudation
｜Boost blood and lymphatic circulation, accelerate absorption of hematoma, effusion and soft‑tissue swelling after
injury or surgery.
Promote wound regeneration & healing
｜Activate cellular activity, stimulate granulation tissue formation, support healing of surgical incisions, burn wounds,
pressure sores, venous ulcers and diabetic foot wounds.
Post‑aesthetic skin barrier recovery
｜Alleviate redness, heat sensation and swelling after aesthetic procedures, assist damaged skin‑barrier repair.
Note: No function for blood‑vessel ablation or telangiectasia removal.

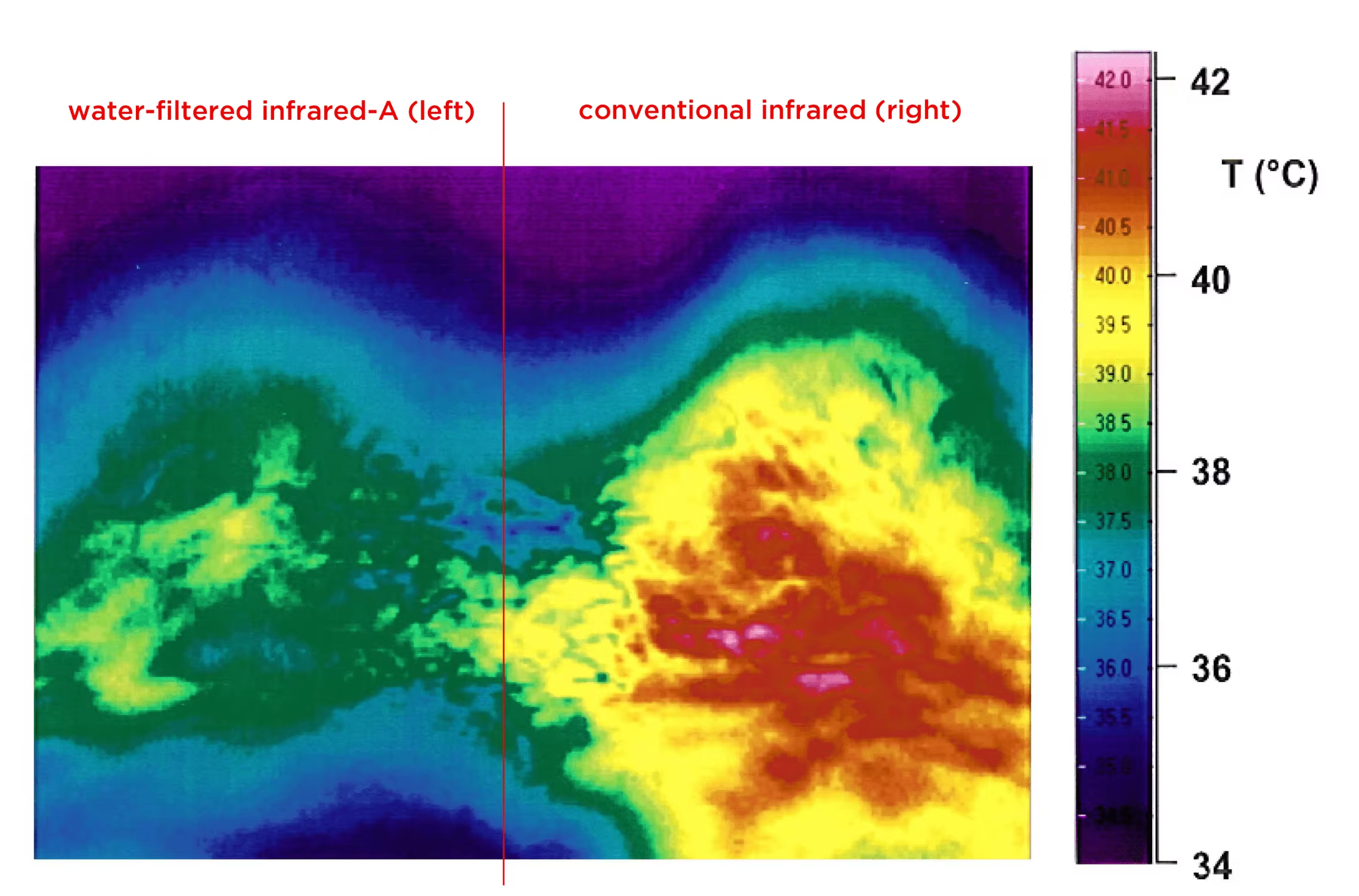

Improve local microcirculation with deep tissue heating
｜Water‑filtered infrared‑A delivers deep penetrating thermal energy with low epidermal thermal load; large‑area
homogeneous irradiation without skin‑burn risk.
Immunomodulation & supportive anti‑infection
｜Enhance activity of local immune cells, improve regional defense response and facilitate inflammatory
wound recovery.
Cross-section of a water-filtered infrared-A radiator

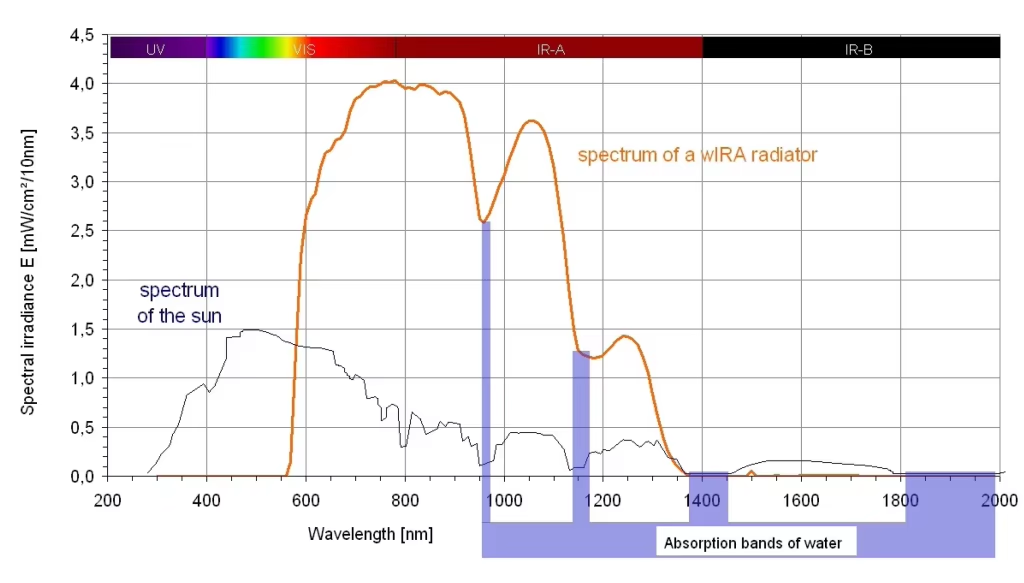

The whole incoherent non-polarized broadband radiation of a 3000 Kelvin halogen bulb is passed through a cuvette
containing water, which absorbs or decreases the undesired wavelengths within the infrared region (most parts of
infrared-B and -C and the absorption bands of water within infrared-A). The water is hermetically sealed within
the cuvette. A fan provides air cooling of the cuvette to prevent the water from boiling.
Specifications:

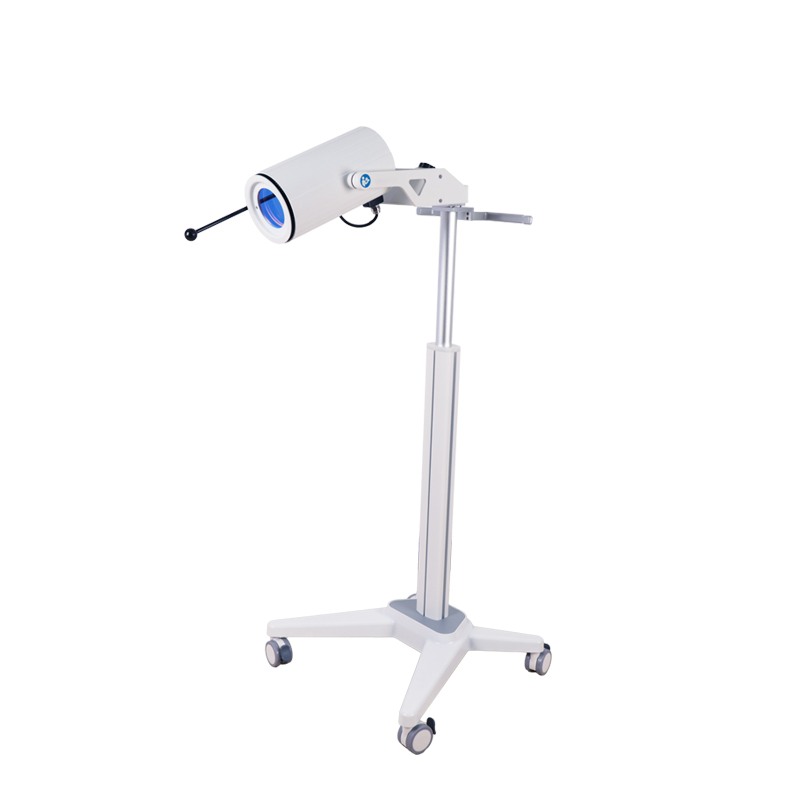

| Product Name | wIRA Therapy Device |
| Model | HPLT-006 |
| Control Method | Mechanical Knob Control |
| Wavelength Range | 0.59–1.4 μm |
| Irradiation Time | Adjustable from 1–60 min |
| Operating Mode | Continuous Operation |
| Noise Level | ≤55 dB(A) |
| Power Supply | AC 220V, 50/60Hz |
| Rated Power | 400W |
| Irradiance at 22 cm | ≥170 mW/cm² |
| Average Light Source Life | Approx. 2,000 Hours |
| Filter Service Life | Approx. 3,000 Operating Hours or 3 Years |
